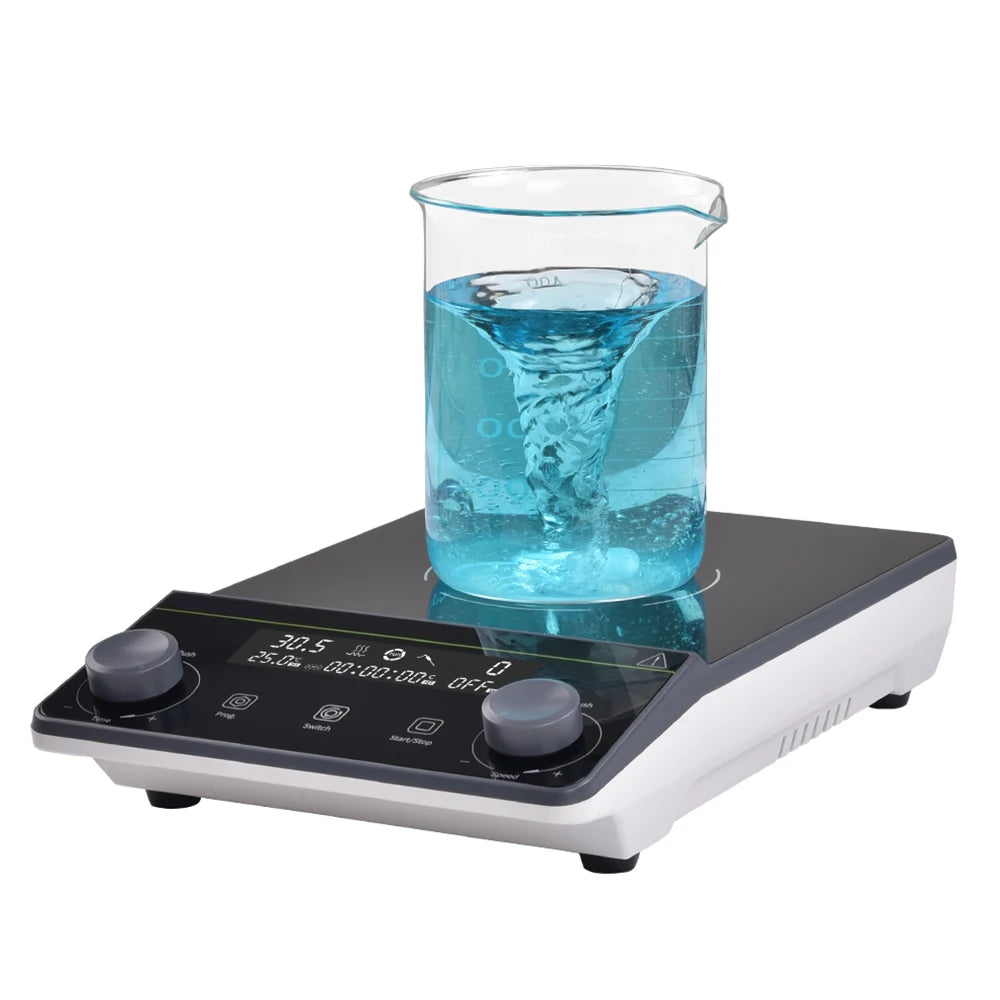

5L Magnetic Stirrer Hot Plate Heating Stirrer with LCD Display

SPECIFICATIONS

Accuracy: ±10rpm

Certification: CE

LC-MSB-D: Magnetic Mixer

LC-MSB-HD: Heating Magnetic Stirrer

Model Number: LC-MSB-D/ LC-MSB-HD

Origin: Mainland China

Speed Range: 100-1600rpm

Type: Lab Magnetic Stirrer

5L Magnetic Stirrer Hot Plate Lab Equipment Heating Stirrer LCD Display Magnetic Mixer With Stir Bar Liquid Lab Stirrer EU Plug

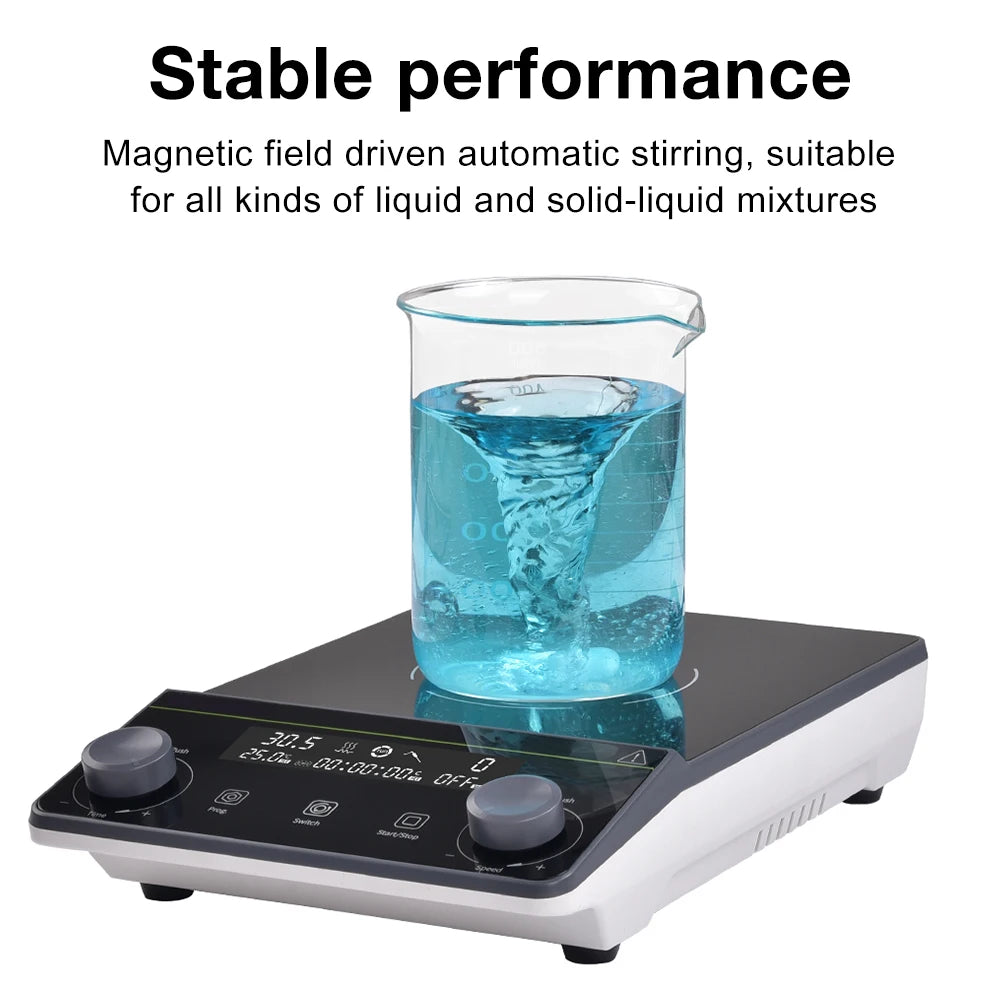

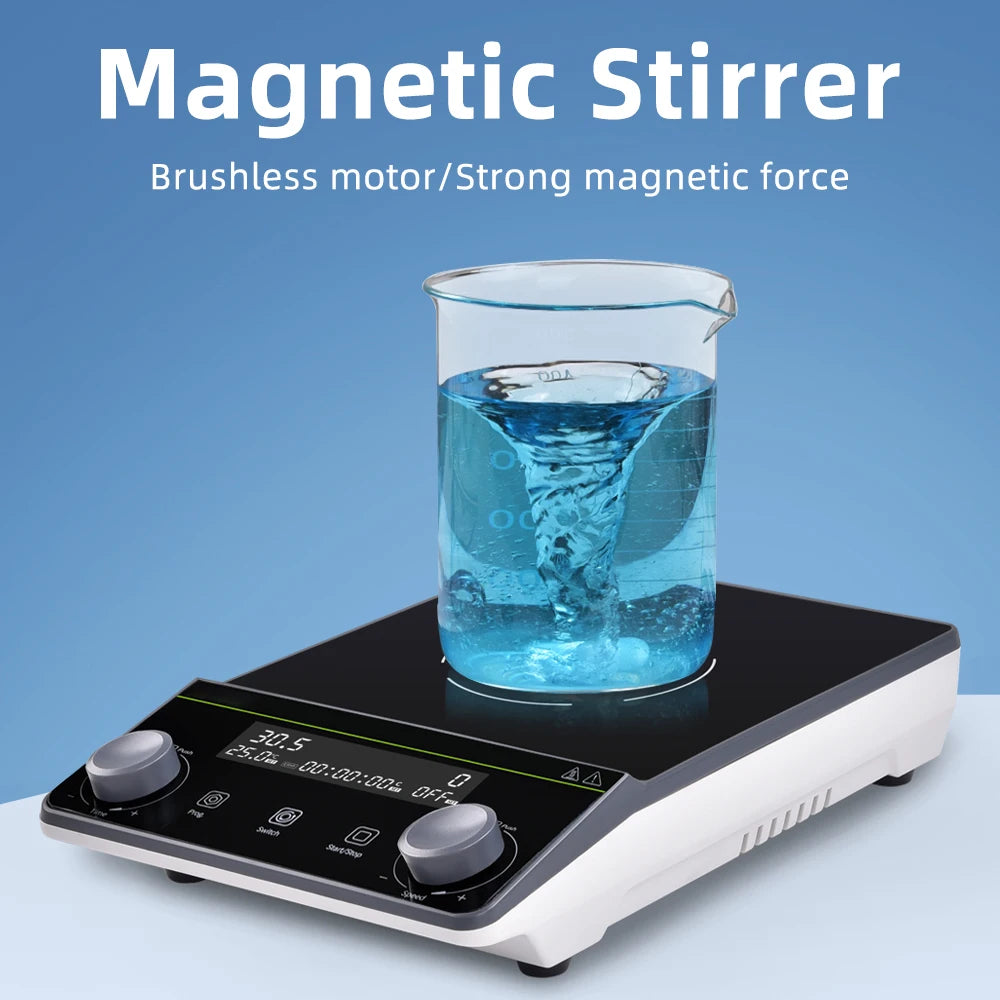

A magnetic stirrer is a laboratory instrument used for liquid mixing, mainly used to stir or simultaneously heat and stir a liquid or solid-liquid mixture with low viscosity. With the heating temperature control system, the sample temperature can be heated and controlled according to the specific experimental requirements, and the temperature conditions required for the experimental conditions can be maintained to ensure that the liquid mixing meets the experimental requirements.

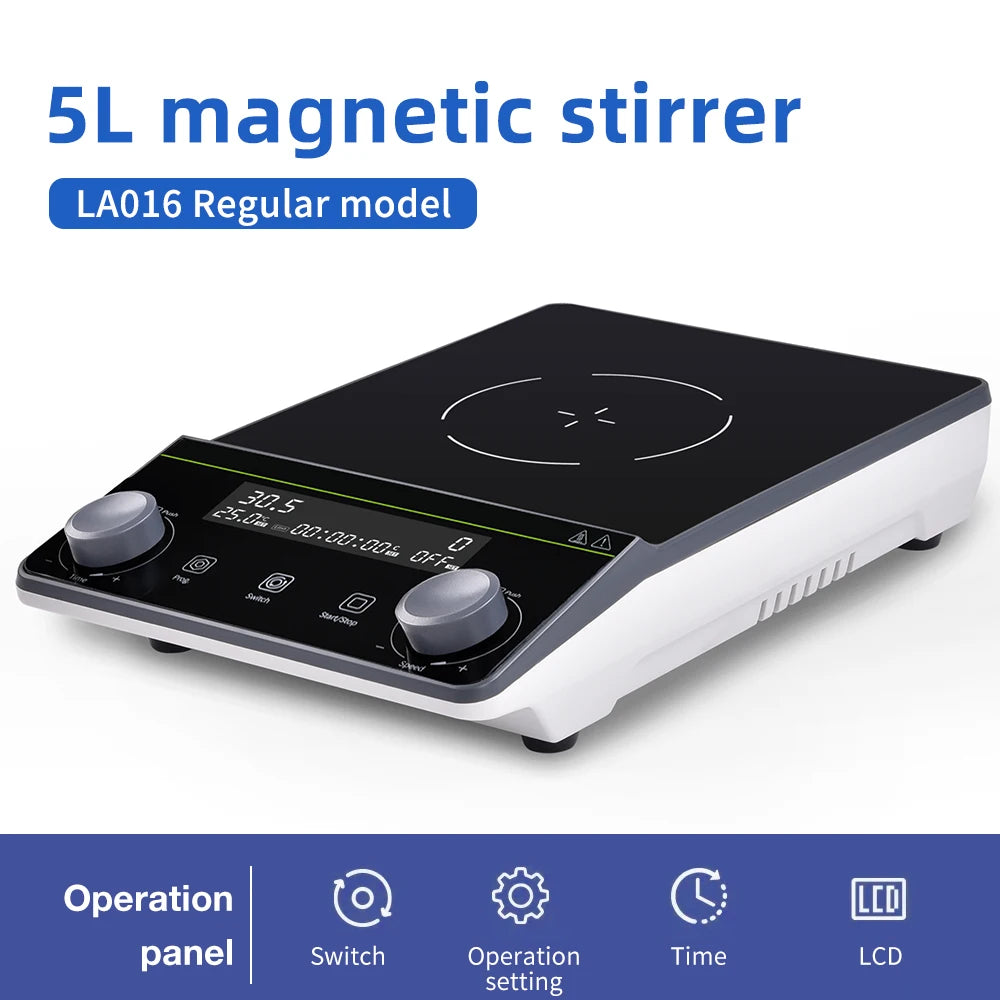

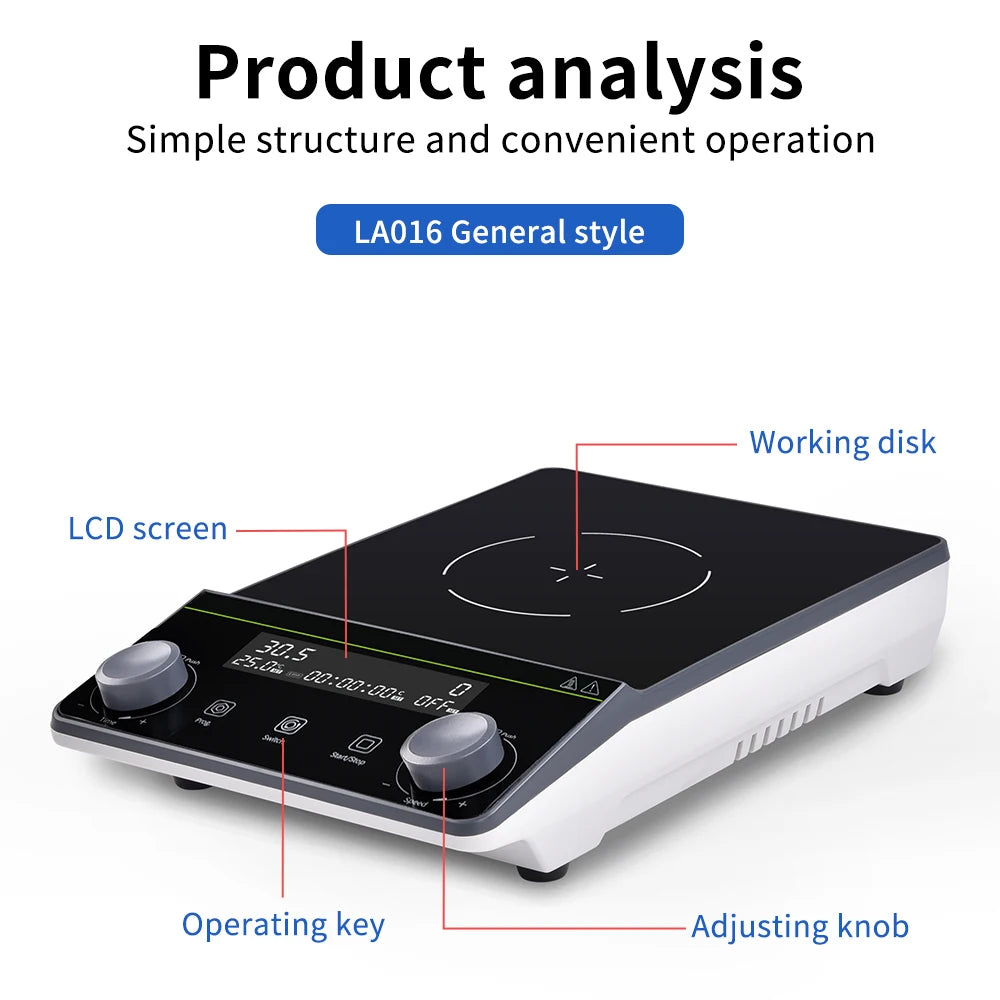

Digital Speed Control LC-SB-D/LA016

(1) Place the magnetic stirrer into the container of the desired stirring solution and place the container on the surface of the magnetic stirrer;
(2) Confirm that the magnetic stirrer is located at the center of the bottom of the container;
(3) Short press the left knob to set the timer time, and short press the right knob to set the speed;
(4) Short press the "Prog" key to enter the program control mode, which defaults to displaying "P1". Set the timing time and speed through the left and right knobs
Up to 6 sets of running programs can be set for the direction of magnetic sub operation. When the timing time is set to "00:00", the current program segment duration is
Inter operation;
(5) Short press the "Switch" button to switch the direction of magnetic operation in programmable mode;
(6) Short press the "Start/Stop" button, and the instrument will start running according to the set parameters. Press it again to stop running.

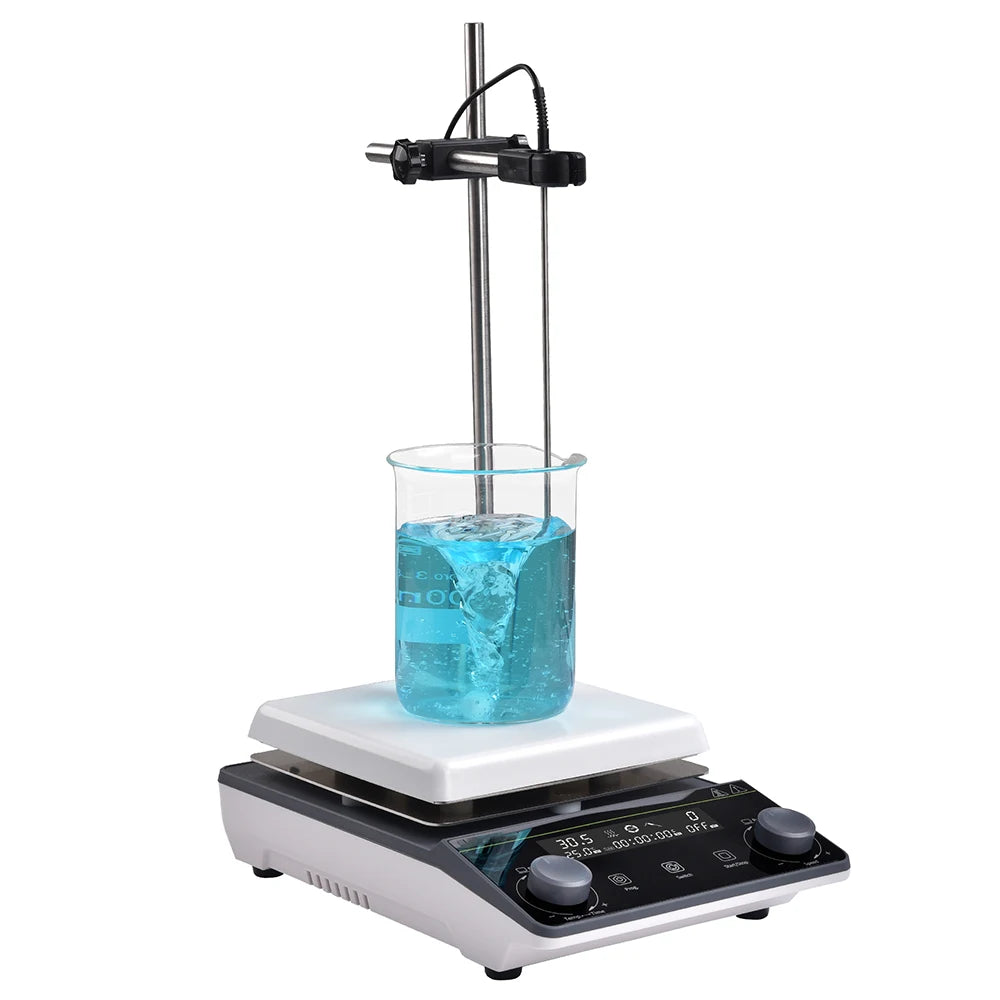

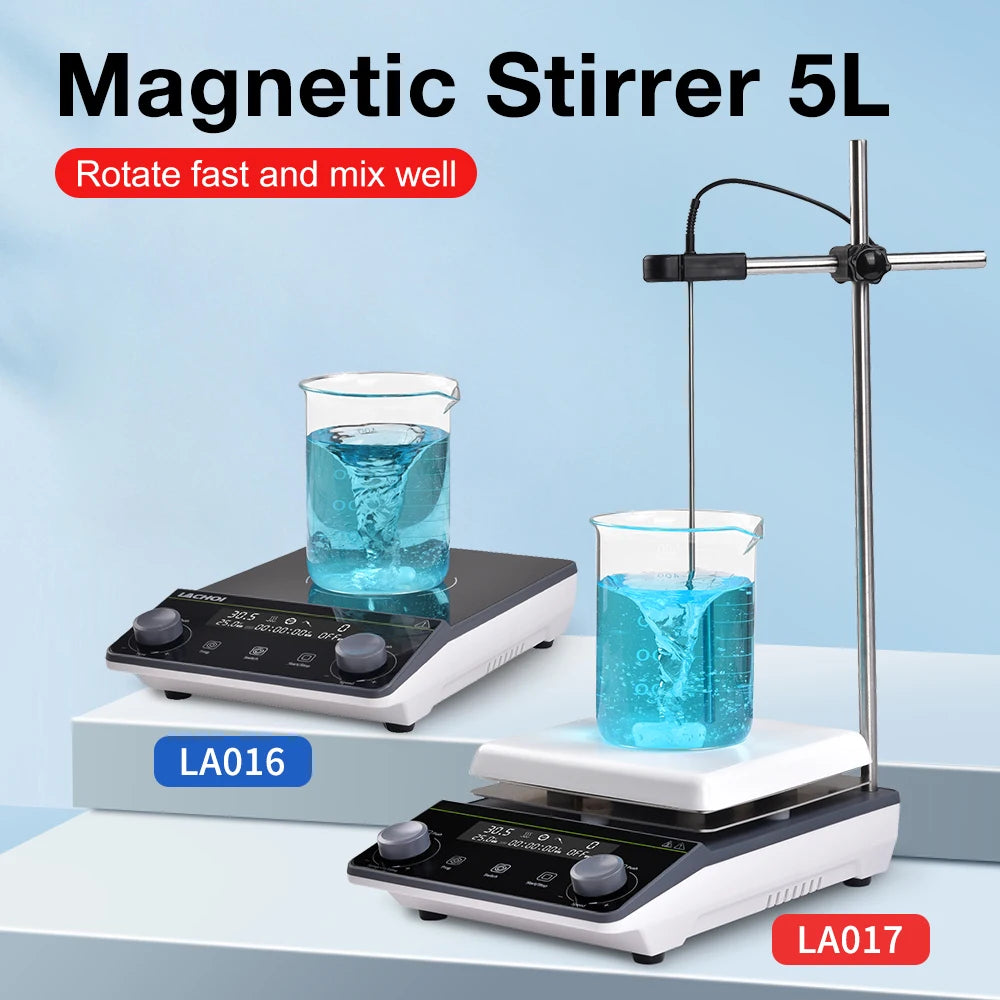

Digital display heating model LC-SB-HD/LA017

(1) Place the magnetic stirrer into the container of the desired stirring solution and place the container on the magnetic stirrer plate;
(2) Confirm that the magnetic stirrer is located at the center of the bottom of the container;
(3) When it is necessary to control the temperature of the solution, an external PT1000 sensor must be inserted and placed in a container before starting up;
(4) Short press the left knob to set time and temperature, short press the right knob to set speed;
(5) Short press the "Prog" key to enter the program control mode, which defaults to displaying "P1". Set the timing time and speed through the left and right knobs
Up to 6 sets of running programs can be set for the direction of magnetic sub operation. When the timing time is set to "00:00", the current program segment duration is
Inter operation;
(6) Short press the "Switch" button to switch the direction of magnetic operation in programmable mode;
(7) Short press the "Start/Stop" button, and the instrument will start running according to the set parameters. Press it again to stop running

Please note:
The package does not contain the test bottle.
